Cache Experience Fragments in AEM Using Sling Dynamic Include

Problem Statement:

Cache all the experience fragments in AEM under a common or shared location on the dispatcher to load dynamically whenever the XF page is activated.

Improve initial page load performance on subsequent requests on the same or similar pages.


The purpose of the module presented here is to replace dynamically generated components (eg. current time or foreign exchange rates) with server-side include tags (eg. SSI or ESI). Therefore the dispatcher is able to cache the whole page but dynamic components are generated and included with every request. Components to include are chosen in filter configuration using resourceType attribute.

When the filter intercepts a request for a component with a given resourceType, it’ll return a server-side include tag (eg. <!–#include virtual=”/path/to/resource” –> for Apache server). However, the path is extended by a new selector (XF by default). This is required because the filter has to know when to return actual content.

Components don’t have to be modified in order to use this module (or even be aware of its existence). It’s a servlet filter, installed as an OSGi bundle and it can be enabled, disabled, or reconfigured without touching the CQ installation.

Flow diagram on the approach:

As part of this implementation, we are trying to cache all the content paths i.e., /var/www/html/publish/content/{site-structire} and experience fragments at different paths like /var/www/html/publish/content/experience-fragment/{site-structure} as shown below:

SDI flow

Create a wrapper component as shown below:

  1. If Container then create a wrapper container component sling:resourceSupertype = core/wcm/components/container/v1/container
  2. If Layout container then create wrapper responsivegrid component sling:resourceSupertype = wcm/foundation/components/responsivegrid
Wrapper component

Update all the XF pages container/layout container components as shown below:

Update only the first container resourcetype under root node to the newly created wrapper component

Update XF page

Update the XF template as shown below:

Update both initial content and structure content, only the first container resourcetype under the root node to the newly created wrapper component

Update XF template

Sling Dynamic Include:

Configure the Sling dynamic as per the documentation provided here:

Configure Sling dynamic configuration as shown below:

SDI configration

Add filter to Dispatcher filter:

/0190 { /type "allow" /extension "html" /selectors "xf" /path "/content/experience-fragments/*" }

Add rules to cache XF selector as shown below:

/0013 {
	/glob "*.xf.html*"
	/type "allow"

Do not add cache deny rule

Once the page is loaded you will be seeing following SDI include message as shown below on the publisher:

SDI message on publisher

SDI loading on dispatcher port 8080

SDI on Dispatcher

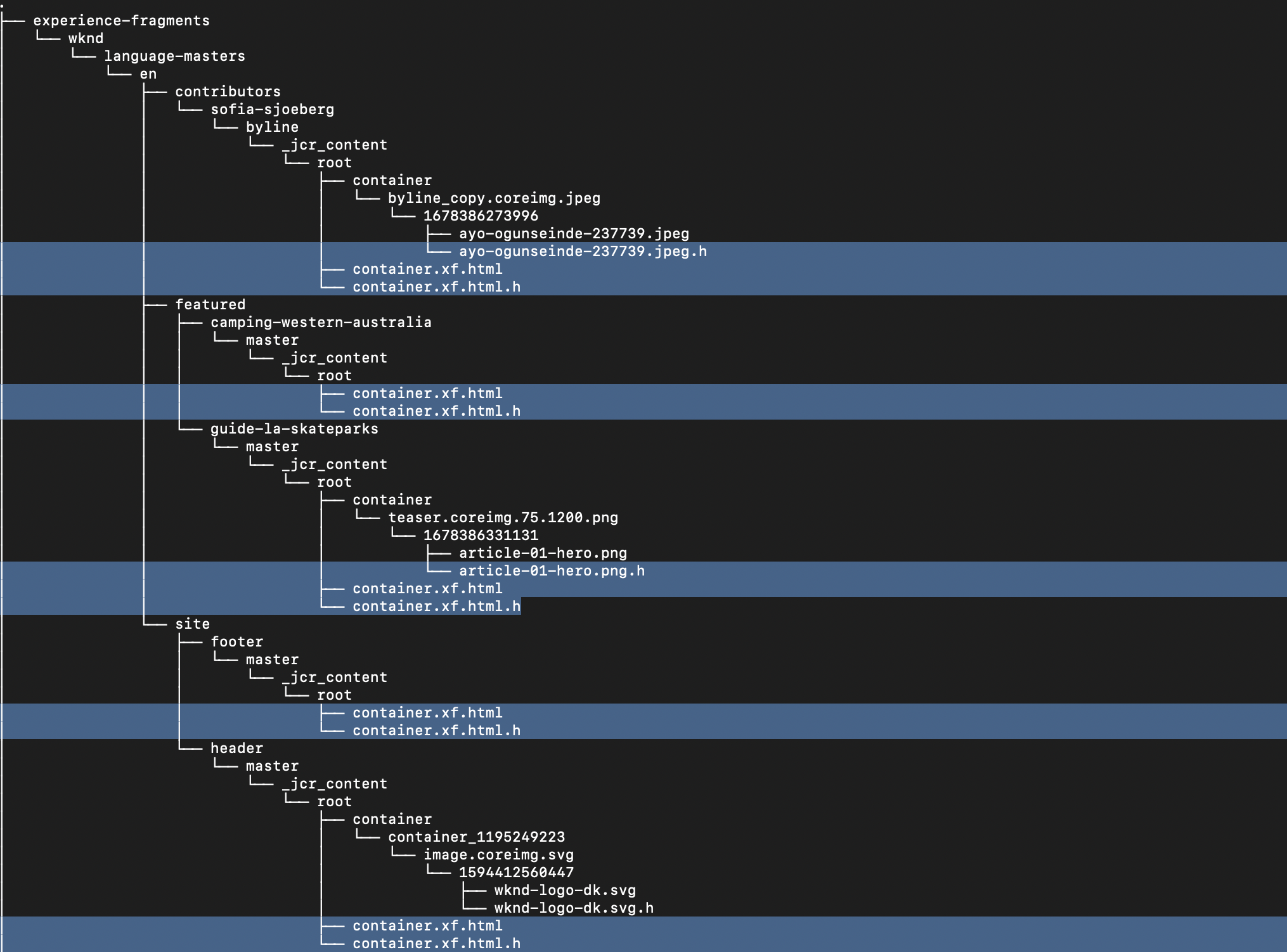

You can verify cache folder for results:

Cached SDI

If SDI includes path appends resourcetype, then clone the SDI repo and update the code as shown below:

SDI issue

Open the as shown below and update the code at synthetic variable to false:

SDI code fix

Run mvn clean install to generate the new jar file and install directly on the publish server or include the external jar dependency on maven

Advantages of caching Experience fragment at common or shared location:

  1. Increases initial page load – response time based on the number of XF on the page
  2. Decreases the Dispatcher cache size – based on the number of XF components on the page
  3. Improves overall page load time
  4. Better debugging SDI functionality – whenever the XF page is updated and published it removes from the cache and on a new page request a new cache is created and used on subsequent requests
  5. Decreases CPU utilization

Credits: I was able to finish this blog with help of my friend

Naveen Kumar Chira
